The Car
I bought the car in February of 1997 with 22,000 original miles. It still wore the Gatorbacks that it was delivered with from the factory. The car is an original L98, N10, G80, G92 car of which less than 1000 were made. I told myself that I would not modify it until it was paid off ... yea right. By the time the car was paid off I finished a full head/cam swap that catapulted me to 12.58 @ 107.9mph while still running the long runner type intake. I upgraded to the MiniRam and was running 12.24 @ 112mph. Now I'm running mid-11's naturally aspirated on the stock GM shortblock. I'm addicted. The car looks totally stock from the outside ... imagine the surprised expressions of those who think this is just another whimpy TPI IROC.
My 11.6@117mph 1/4 mile video
Video
illustrating the sound of Long Tubes with Dynomax UltraFlo Muffler
Video illustrating the
sound of Long Tubes with Flowmaster Muffler
My article at TGO
on PROM programming
My article
at TGO on installing LT Headers
Performance | ||||||||||||||||||||||
|
F-body Specs
1990 Billiant Red IROC-Z
5.7 Liter V-8 (TPI) - 4 speed
automatic
Options: G80, G92, N10
Weight: 3550 lbs.
Engine:
_____________________________________________ Lethal EFI Performance Custom Cam by Joe Overton
Stock GM shortblock - the motor
has never been out of the car.
AFR 190cc Aluminum Cylinder Heads:
- 60cc
Chambers
- 7/16" Studs
- Cylinder Head Flow Sheet
Comp Cams 987
Springs
Comp Cams Titanium 10º Retainers
Viton Valve
Seals
AFR HydraRev
Kit
Trick Flow Chromoly 7.200" pushrods
Competition Cams Pro-Magnum
Roller Rockers
Competition Cams 'R' Lifters
Cloyes
Hex-A-Just Double Roller Timing Chain
30lb SVO Injectors
TPIS
AFPR
Walbro 255ltr/hr fuel pump
Fluidampr Harmonic Balancer
Induction:
___________________________________________________________
Random Technology
Ram-Air
Gutted Airbox with K&Ns
BBK 58mm TB
TPIS MiniRam
II

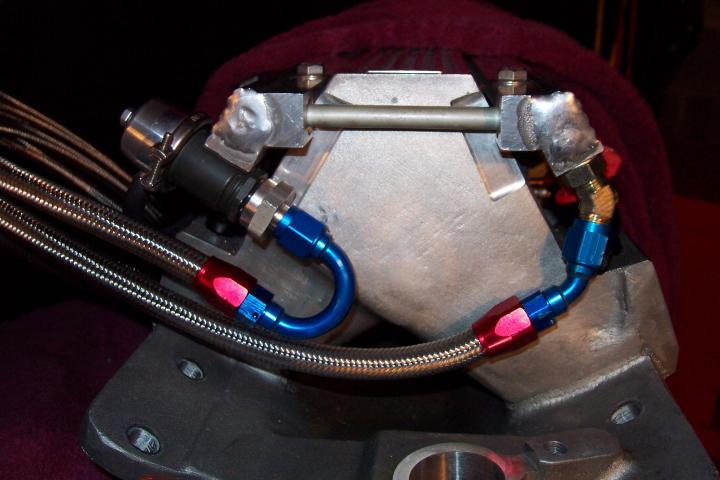

Custom Fuel
Lines for MiniRam
Exhaust:
_____________________________________________________________
Hooker Long Tube
SuperComp 1-3/4" headers
Mufflex
Y-pipe
Flowmaster Force II 3" Catback
Dynomax UltraFlo welded muffler
Drivetrain:
___________________________________________________________
Genuine GM 3.73
Gears
Auburn PRO Limited Slip Differential
LPW Ultimate Aluminum Rearend
Girdle
LPW Axle Tube Brace Kit
Denny's 3" N2O ready shaft (w/ 1350
10-bolt pinion yoke)
Precision
Industries Vigilante 3600 stall Torque Converter
B&M SFI Approved
Flexplate
B&M Shift Kit
B&M Auxiliary Remote Mount tranny
filter
B&M Auxiliary 24,000GVW SuperCooler
B&M Console
Megashifter
GM Corvette Servo
GM 0.500/0.296 TV Boost/Intermediate Boost
Valve
Derale Starfire Tranny pan
Suspension:
__________________________________________________________
Global West
VaraTrac LCA Relocation Brackets
Global West Spherical Bearing / Del-A-Lum
Bushing LCAs
Global West Spherical Bearing fully adjustable panhard
rod
Global West TS-14 Steering Box Brace
Alston Chassis Welded Subframe
connectors
Hotchkis Strut Tower Brace
Sandblasted and Powdercoated stock
36mm Front and 24mm Rear swaybars
Energy Suspension polyurethane swaybar
bushings and endlinks
Energy Suspension polyurethane tranny mount
Energy
Suspension Engine Mounts
Air Lift airbags in rear springs
Coming
Up: Koni Yellows, Tokico Lowering Springs, Baer Tracker, Fresh Moog front
suspension.
Brakes:
_______________________________________________________________
Earl's
braided SS brake lines
Bendix Titanium pads
Misc.:
_________________________________________________________________
SPT Custom
PROM (Siford Performance Tuning - lol)
V6 Intake Bellows with Relocated MAT
sensor
Patented Mike D Coffee Can Intake mod
Edelbrock Hi-Flow Water
Pump
March Power & Amp 3-Piece Aluminum underdrive pullies
Comp Cams
Billet 3-Piece timing cover
MSD 6AL Ignition
MSD SuperCoil
MSD 8.5
wires
MFY Centerbolt Wire looms
Moroso Billet Aluminum Valve Covers
CSI
High torque MiniStarter
Dual 2"
A-Pillar guage pod with: Intellitronix Air/Fuel Ratio guage and
Intellitronix Fuel Pressure Guage
!TB Coolant
(Chopped IAC Cover)
!AIR, !AC / Heat, !Cats, !EGR, !Cruise Control,
!Charcoal Canister
Coming Up: Non AC Heater box
